Microsoft Intune Endpoint Security Lab

This project demonstrates practical Microsoft Intune experience through the configuration, deployment and validation of Windows endpoint security policies. The lab focused on managing a Windows 11 Pro device and verifying security controls directly on the endpoint.

Project Overview

Microsoft Intune provides cloud-based endpoint management and security policy deployment. In this project I created and deployed Windows security configuration profiles, monitored their deployment status and validated the resulting controls on a managed Windows endpoint.

Why I Built This Lab

I created this lab to gain practical endpoint management experience beyond certification study. The project demonstrates how security policies can be configured centrally in Intune, applied to a Windows device and then verified at the endpoint.

Lab Environment

• Microsoft Intune
• Microsoft Entra ID
• Windows 11 Pro endpoint
• Windows Settings Catalog
• Microsoft Defender Firewall
• Microsoft Defender SmartScreen
• Windows device lock and inactivity controls

Project Objectives

1. Enroll and manage a Windows endpoint with Microsoft Intune.
2. Create Windows security configuration profiles.
3. Configure Microsoft Defender Firewall settings.
4. Configure Microsoft Defender SmartScreen.
5. Configure Windows inactivity and device lock controls.
6. Monitor policy deployment and verify successful application.
7. Validate security controls directly on the Windows endpoint.

Implementation Summary

I created four Intune configuration profiles covering Windows security baseline controls, Microsoft Defender Firewall, device lock and Microsoft Defender SmartScreen. The policies were assigned to the managed Windows endpoint and successfully reported as applied in Intune.

Endpoint validation was then performed using Windows Security and Windows security administration tools to confirm that the configured controls were being enforced on the device.

Security Policies Configured

• Windows Security Baseline Lab — Windows security configuration and Microsoft Defender controls.
• Windows Defender Firewall Lab — Firewall protection enabled across network profiles with restrictive inbound defaults.
• Windows Device Lock Lab — Interactive Logon Machine Inactivity Limit configured to 900 seconds.
• Windows SmartScreen Lab — Microsoft Defender SmartScreen configured and managed by Intune.

Validation & Results

Intune reported all four configuration profiles as Succeeded on the managed Windows endpoint. The Windows device was then checked locally to verify the deployed security controls.

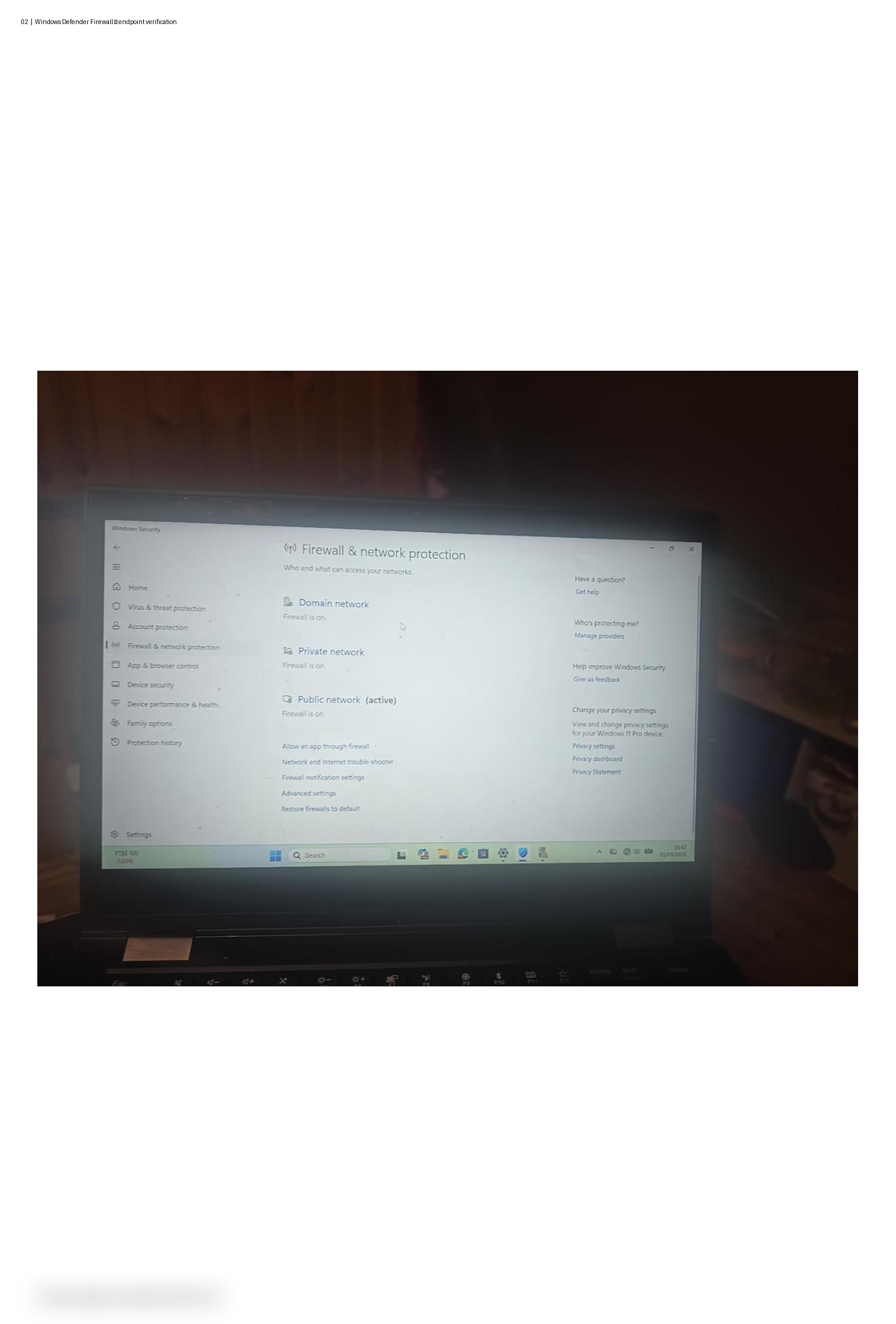

• Windows Defender Firewall — enabled for Domain, Private and Public network profiles.

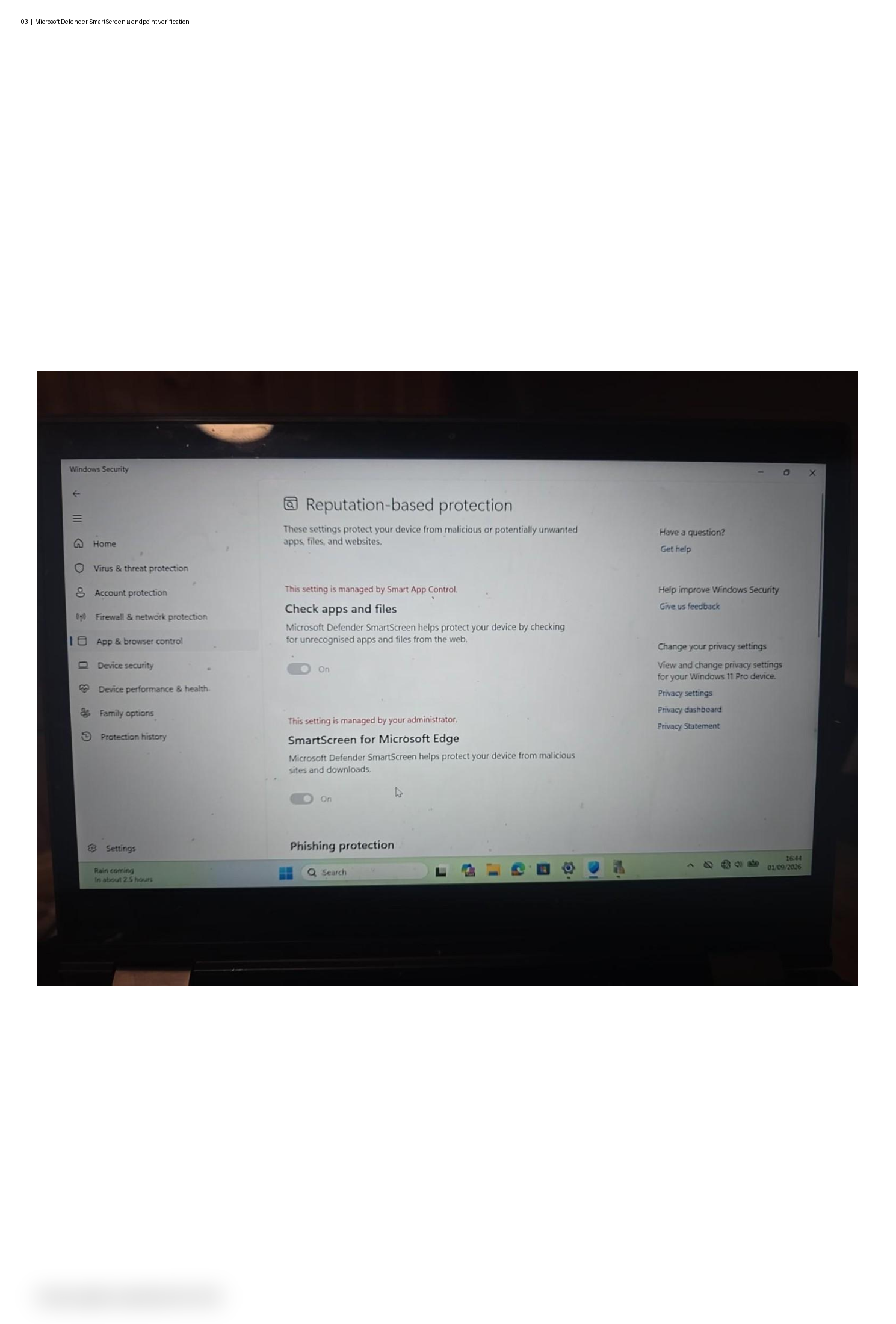

• Microsoft Defender SmartScreen — enabled and shown as managed by the administrator.

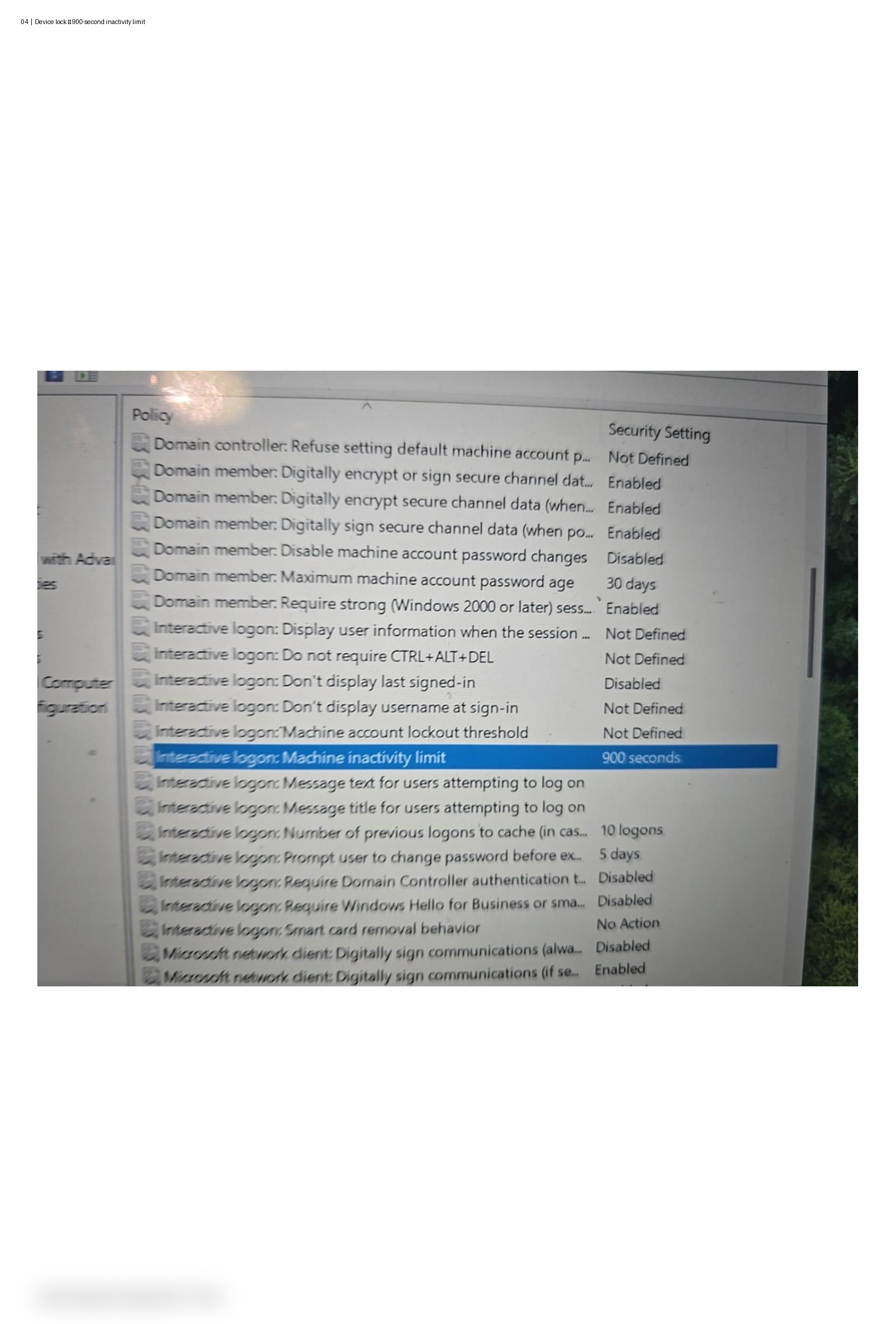

• Device inactivity limit — configured to 900 seconds and verified through Windows security policy settings.
• Policy deployment — all four Intune configuration profiles reported successful application.

Challenges & Troubleshooting

During validation, I tested the Windows inactivity control and investigated the difference between an enforced inactivity policy and Windows power-management settings. The inactivity limit was confirmed at 900 seconds, while the device's separate screen, sleep and hibernate timers were reviewed independently.

This reinforced the importance of validating both the central Intune policy and the resulting endpoint configuration rather than relying only on deployment status.

Skills Demonstrated

• Microsoft Intune
• Windows Endpoint Management
• Microsoft Entra ID
• Settings Catalog
• Security Configuration Profiles
• Microsoft Defender Firewall
• Microsoft Defender SmartScreen
• Windows Security Administration
• Policy Deployment & Monitoring
• Endpoint Validation & Troubleshooting

Project Screenshots

The screenshots below demonstrate the deployment and endpoint validation stages of the Microsoft Intune security lab.

Key Lessons Learned

• Security policies must be validated after deployment.
• Intune deployment status does not replace endpoint-side verification.
• Windows security controls and power-management settings can operate independently.
• Centralised endpoint management provides a practical way to enforce security standards.
• Troubleshooting requires checking both the management platform and the endpoint.

Conclusion

Building this lab strengthened my understanding of Microsoft Intune, Windows endpoint management and practical security policy deployment. It also improved my ability to configure, monitor and validate security controls across a managed Windows environment.
